Why Choose HPS-PES-S-T10?
• Reliable Abrasion Resistance
The closely woven polyester construction helps protect hose surfaces against routine friction and mechanical contact.
• Balanced Structural Stability
Maintains a consistent protective covering while offering flexibility for practical hose routing.
• Reduced Surface Damage
Helps minimize wear caused by vibration and repeated contact with adjacent hoses or equipment components.
• Versatile Industrial Applications

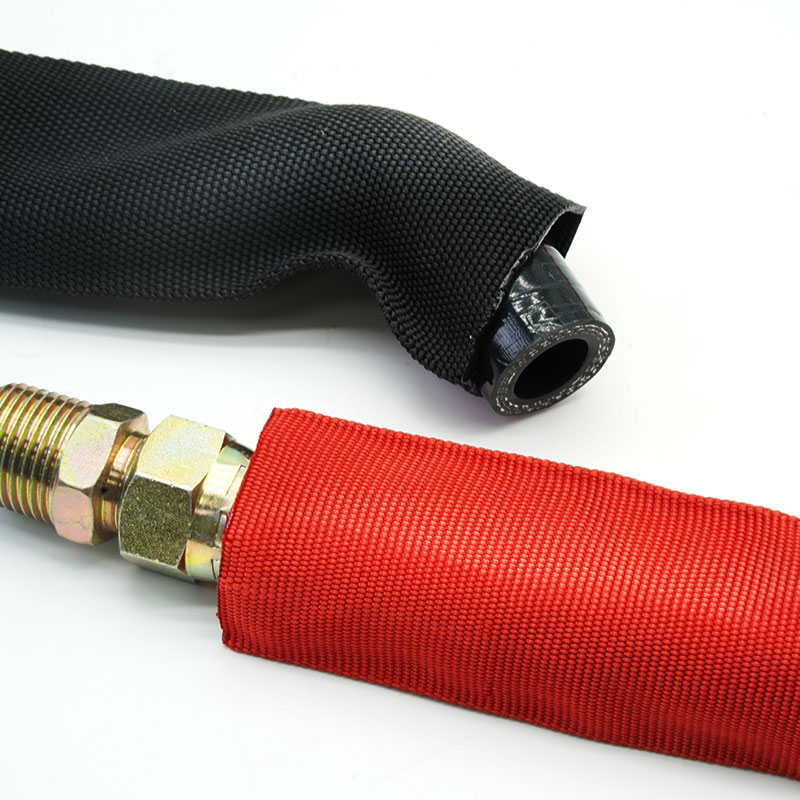

Suitable for hydraulic systems, construction machinery and industrial equipment requiring dependable external hose protection.

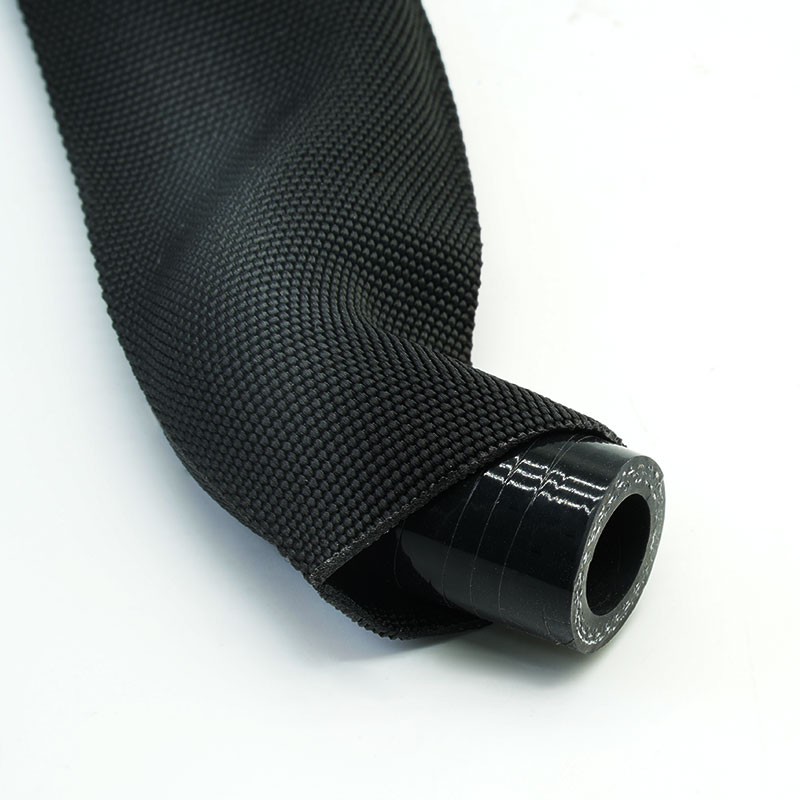

1. Closely Woven Polyester Structure
Provides consistent textile coverage for hydraulic hoses and flexible tubing.
2. Balanced Abrasion Protection
Helps reduce surface wear caused by friction, vibration and contact with surrounding components.
3. Reliable Structural Stability
Maintains a stable tubular form during normal installation and hose routing.
4. Flexible Routing Performance
Accommodates bends and changes in hose direction without the rigidity of solid protective guards.
5. Multi-Hose Organization
Helps group compatible hydraulic lines into a neat, manageable assembly.

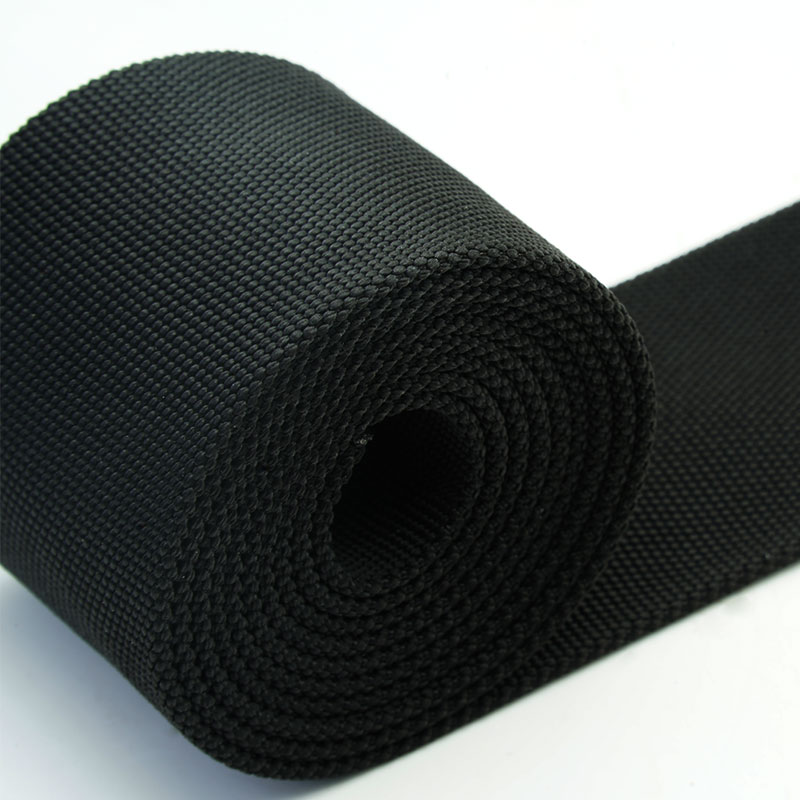

6. Flexible Supply Formats
Available in rolls or pre-cut lengths with optional identification and customized packaging.
| Material |
Polyester
|
| Working Temperature |
-40°C to +150°C |
| Melting Point |
220±10°C |
| Flammability |
FMVSS 302 |
| MSHA Compliance |
Refer to MSHA IC293/01 |
| Blasting Resistance |
Refer to ISO3457 |
| Abrasion Resistance |
Refer to ISO 6945 |
| Anti-leakage |
Conform to SAE J343 |
| UV Resistant |
Conform to BS EN13758-1 |
| Standard Color |
Black |
| Cutting Tool |
Hot knife |
Specifications
|
Part No
|
I.D
(mm)
|
Flat Width
(mm)
|
Wall
Thickness
(mm)
|
Packing
Length
(m/spool)
|
| HPS-PES-S-010-BK-T10 |
10 |
20 |
1.0±0.1
|
50 |
| HPS-PES-S-012-BK-T10 |
12 |
24 |
1.0±0.1
|
50 |
| HPS-PES-S-014-BK-T10 |
14 |
25 |
1.0±0.1 |
50 |
| HPS-PES-S-017-BK-T10 |
17 |
30 |
1.0±0.1 |
50 |
| HPS-PES-S-020-BK-T10 |
20 |
35 |
1.0±0.1 |
50 |
HPS-PES-S-023-BK-T10
|
23 |
39 |
1.0±0.1 |
50 |
| HPS-PES-S-025-BK-T10 |
25 |
42 |
1.0±0.1 |
50 |
HPS-PES-S-027-BK-T10
|
27 |
46 |
1.0±0.1 |
50 |
HPS-PES-S-031-BK-T10
|
31 |
52 |
1.0±0.1 |
50 |
| HPS-PES-S-033-BK-T10 |
33 |
55 |
1.0±0.1 |
50 |
HPS-PES-S-036-BK-T10
|
36 |
60 |
1.0±0.1 |
50 |
| HPS-PES-S-040-BK-T10 |
40 |
66 |
1.0±0.1 |
50 |
HPS-PES-S-044-BK-T10
|
44 |
72 |
1.0±0.1 |
50 |
| HPS-PES-S-047-BK-T10 |
47 |
77 |
1.0±0.1 |
50 |
| HPS-PES-S-050-BK-T10 |
50 |
80 |
1.0±0.1 |
50 |
| HPS-PES-S-053-BK-T10 |
53 |
86 |
1.0±0.1 |
50 |
HPS-PES-S-056-BK-T10
|
56 |
91 |
1.0±0.1
|
50 |
HPS-PES-S-060-BK-T10
|
60 |
97 |
1.0±0.1
|
50 |
HPS-PES-S-062-BK-T10
|
62 |
100 |
1.0±0.1
|
50 |
| HPS-PES-S-066-BK-T10 |
66 |
107 |
1.0±0.1
|
50 |
| HPS-PES-S-073-BK-T10 |
73 |
118 |
1.0±0.1
|
50 |
HPS-PES-S-078-BK-T10
|
78 |
126 |
1.0±0.1
|
50 |
| HPS-PES-S-080-BK-T10 |
80 |
130 |
1.0±0.1
|
50 |
HPS-PES-S-085-BK-T10
|
85 |
137 |
1.0±0.1
|
50 |
| HPS-PES-S-090-BK-T10 |
90 |
145 |
1.0±0.1
|
50 |
HPS-PES-S-093-BK-T10
|
93 |
149 |
1.0±0.1
|
50 |
HPS-PES-S-102-BK-T10
|
102 |
165 |
1.0±0.1
|
50 |
HPS-PES-S-106-BK-T10
|
106 |
170 |
1.0±0.1
|
50 |
| HPS-PES-S-112-BK-T10 |
112 |
179 |
1.0±0.1
|
50 |
| HPS-PES-S-127-BK-T10 |
127 |
206 |
1.0±0.1
|
50 |
Typical Applications
Material Handling Equipment
Protects hydraulic hoses around forklift masts, lifting mechanisms and steering assemblies from routine friction and vibration.
Agricultural Machinery
Helps reduce hose-to-hose rubbing on tractors, harvesting equipment and hydraulic implements during normal operation.
Industrial Hydraulic Systems
Provides external abrasion protection for hoses routed near machine frames, mounting brackets and moving assemblies.
Construction Equipment
Supports organized hose routing and helps limit surface wear in hydraulic circuits exposed to regular mechanical contact.
Measure the maximum outside diameter of the individual hose or complete hose bundle, including fittings, clamps and local transitions. Choose a sleeve that installs without excessive stretching yet remains close enough to avoid snagging or uncontrolled movement. Review bend radius, flex frequency, rubbing points, temperature, hydraulic fluids, outdoor exposure and the method used to secure each end. For applications requiring protection against high-pressure fluid spray or hose bursts, the sleeve's suitability should be verified under the relevant operating and test conditions.
Customization Available
• Diameter and Bundle Fit - Select suitable sleeve sizes based on the outside diameter of individual hoses or multi-hose bundles.
• Cut Lengths and Tolerances - Customized cut lengths and tolerance control to meet the requirements of specific machine zones, hose kits, or assembly stations.

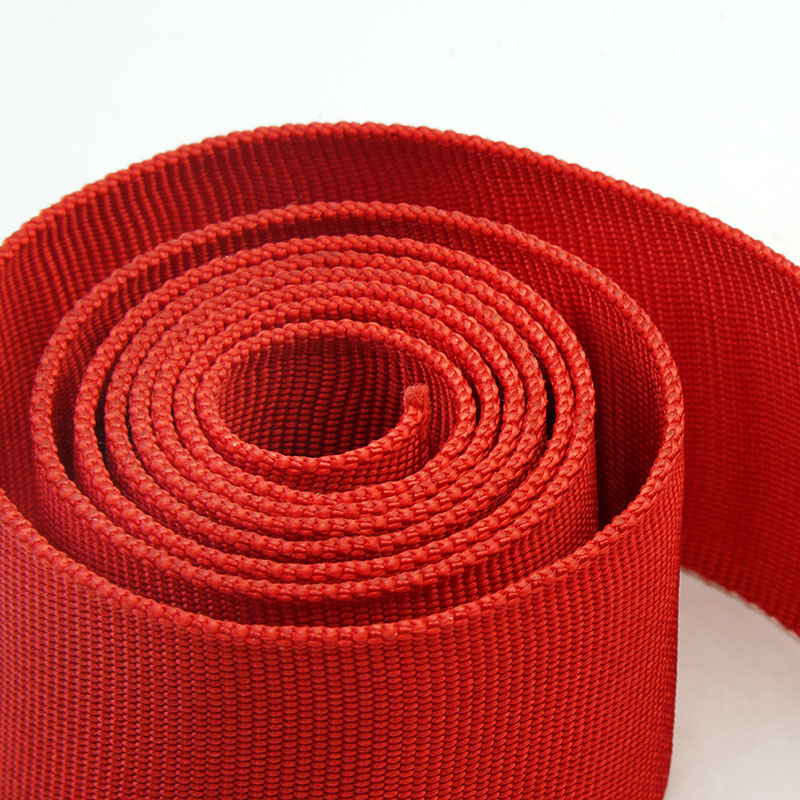

• Color and Identification - Black is the standard color; printed labels or other identification options can be evaluated upon request.
• Packaging - Available in rolls, bags, kits, and customized OEM cartons.
• Incoming yarn verification - Material identity and agreed purchasing requirements are checked before production.
• Wall and construction checks - Nominal thickness and textile build are measured according to the approved inspection plan.
• Size and fit review - Finished diameter and sample fit are compared with the confirmed hose or bundle dimensions.
• Workmanship inspection - The sleeve is examined for yarn damage, contamination, uneven coverage and unacceptable openings.
• Order conformity - Length, marking, end finish, quantity and packaging are checked against the released order.
Frequently Asked Questions
01. Should the cover fit tightly around the hose?
It should stay close to the hose without being forced over fittings or restricting bends. Select from the measured outside diameter.
02. How should the sleeve be inspected during maintenance?
Check for excessive wear, cuts, displacement and trapped contamination. Replace damaged sleeves and inspect the hose underneath.
03. Where is a 1.0 mm polyester hydraulic hose cover most useful?
It suits machinery and service environments where hose covers face regular rubbing, handling and contact with nearby structures.
04. How does a polyester hydraulic hose sleeve resist abrasion?
Its woven textile structure creates a protective layer around the hose, reducing direct contact with nearby surfaces and helping limit friction-related damage.
Request a Sample or Quote
Send the hose or bundle outside diameter, routing conditions, abrasion points, temperature, fluid exposure, finished length and order quantity. MJ FLEX will review the fit and arrange a HPS-PES-S-T10 sample or quotation.
